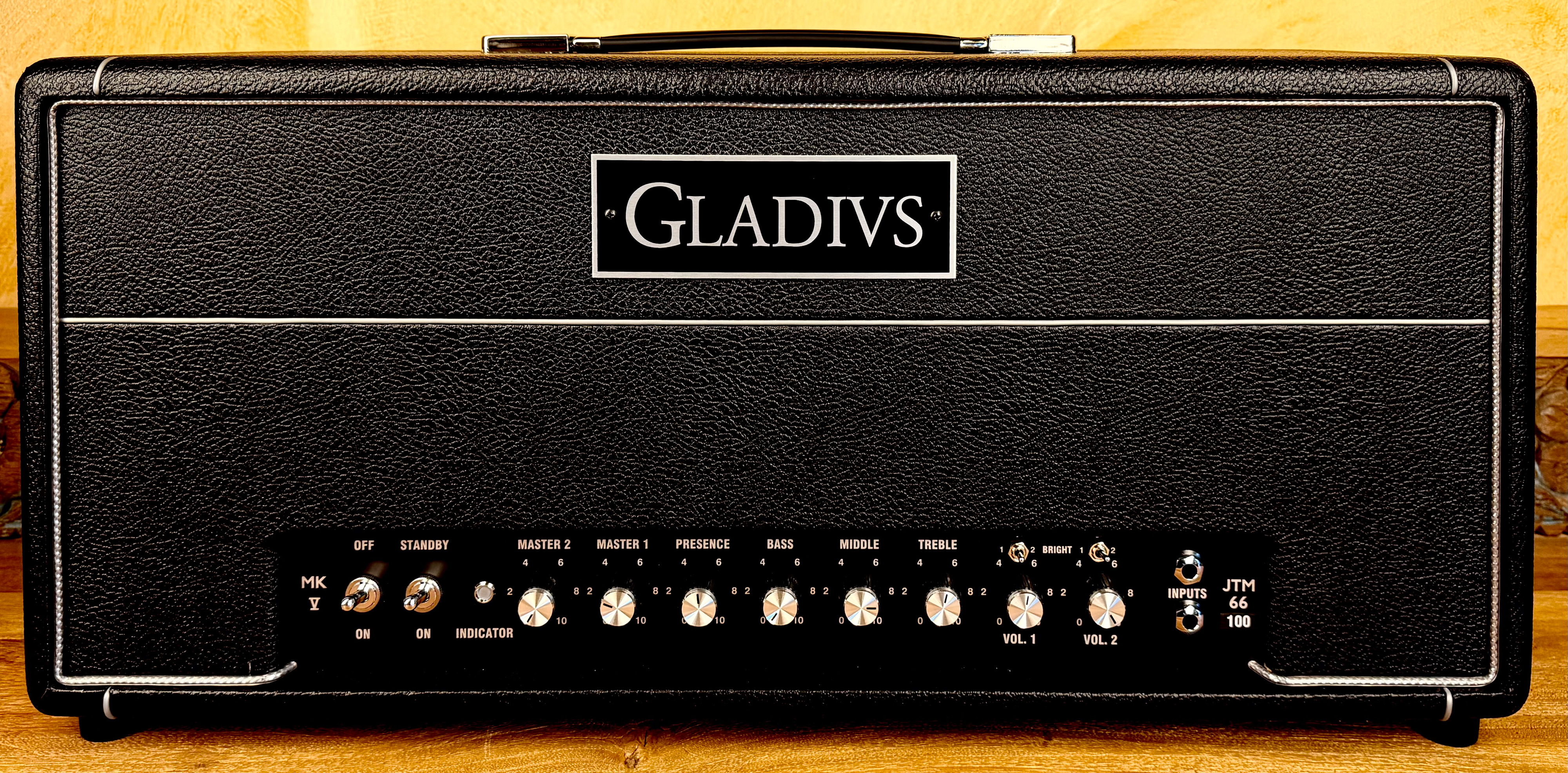

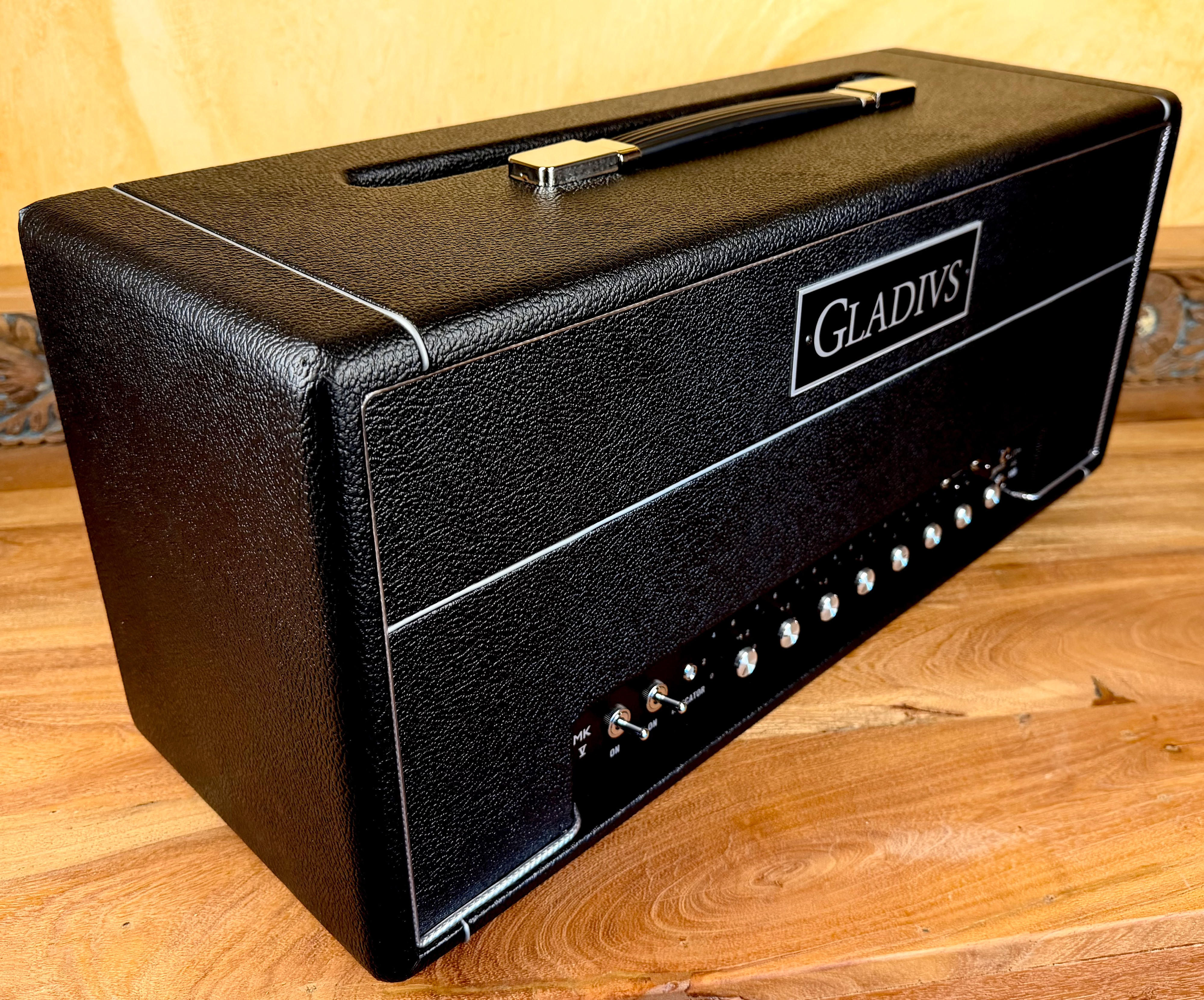

JTM 66/100

MK V

The JTM 66/100 is the legendary Hendrix amp from 1966. The Gladius JTM66/100 has the same tone but with many options such as various bright caps that drastically alter the sound, as well as an effects loop and two master volumes for rhythm and solo. An indispensable extra feature is the internal Channel-Patch, switching both channels (Treble & Normal). An extremely tight amp that, despite its 100 watts, never seems too loud.

Type:

Power:

Output Tubes:

Preamp Tubes:

Rectifier:

Input Hi:

Input Lo:


Controls:

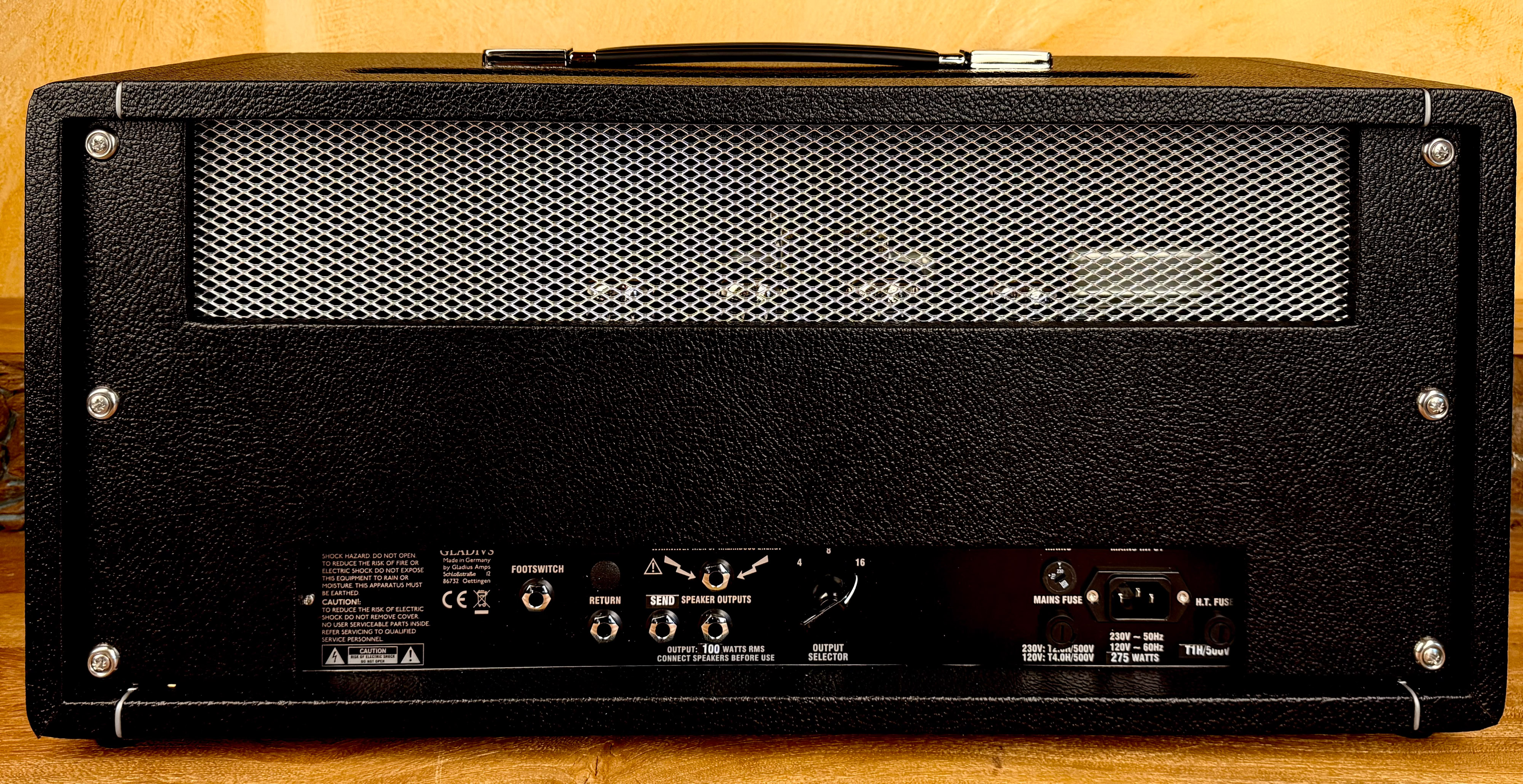

Back:

Effect-Loop:

Colors:

Weight:

Dimension:








Class B 115/230V

0,1 - 100 Watt

4x KT88 Black Plate

3x ECC83 Mullard

Solid State

Vol. 1 Treble (w/Channel-Patch Normal), 3 different Bright Caps switchable

Vol. 2 Normal (w/split of Hi-Treble Ch. for use with A/B Switcher) 3 different Bright Caps switchable

Volume 1&2  Treble, Bass, Middle, Treble, Presence, 2 foot switchable Master Volumes

4/8/16 Ohm Selector, 2 Outputs, Effect-Loop Send & Return, MV 1&2 Footswitch

Passive parallel

orig. Black Levant

21,1kg

B63xH29xT22cm

3.353,- (Net) / 3.990,- Euros (19%) in stock!

Incl. 1 button fotswitch!

incl. German VAT w/1year ltd. guarantee + 1year ltd. warranty
