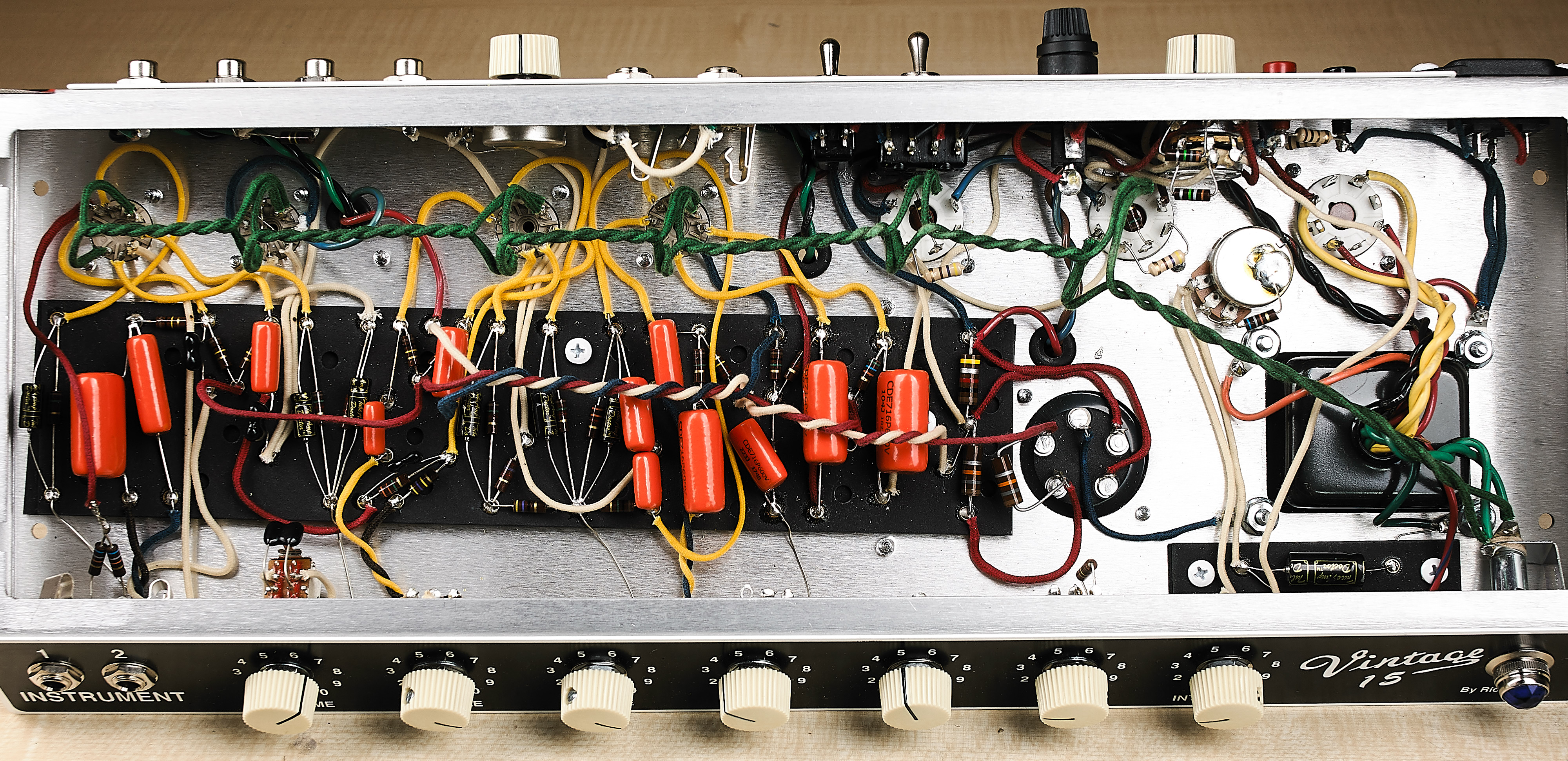

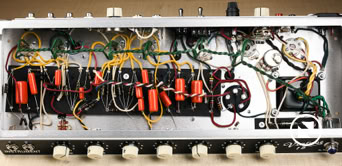

The Vintage 15 is essentially an all hand-wired, all USA made, modified Fender Princeton Reverb. It's based on the "blackface" Fender Princeton Reverb (AA1164) used from 1964-1967, but with some upgrades. For starters, the power tube section has been upgraded by adding grid plate resistors (as seen in the Black Face AB763 circuitry). In addition, the speaker has been upgraded to a 12", giving it a fuller bottom end than the 10" originally used by Fender.Also included is a very nifty reverb dwell control which is on the rear of the chassis.


The Vintage 15 has a significant amount of warm, clean headroom for a 15 watt amp. As you turn the volume knob, it doesn't start breaking up until about 4 or 5 on the dial. It will easily hold it's own again any Deluxe Reverb out there.Players from all genres LOVE this amp - from Blues, to Country, to Rock!


The new MV version 2019 has a modified „Trainwreck“ Post Phase Inverter Master Volume WITHOUT any tone loss!!!

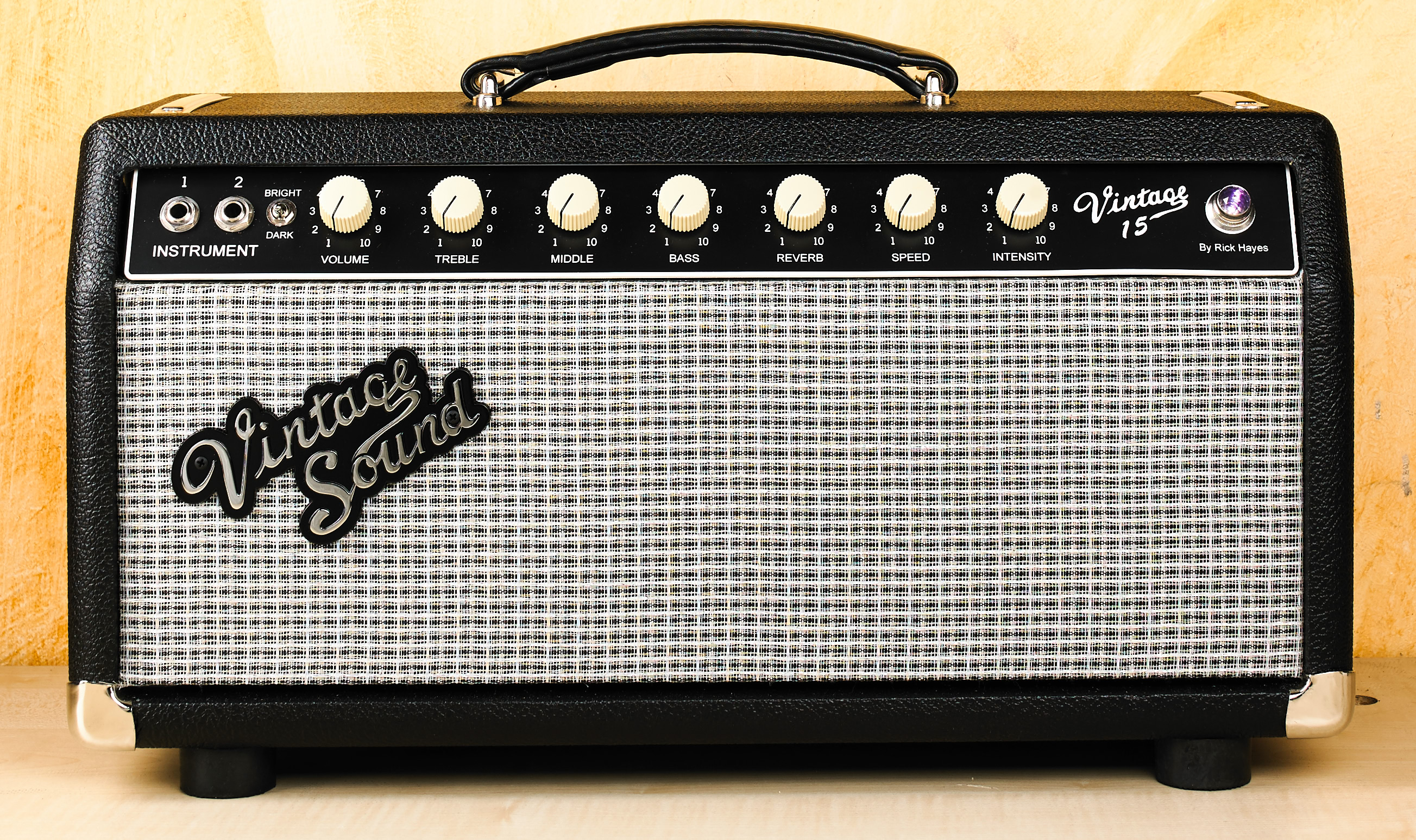

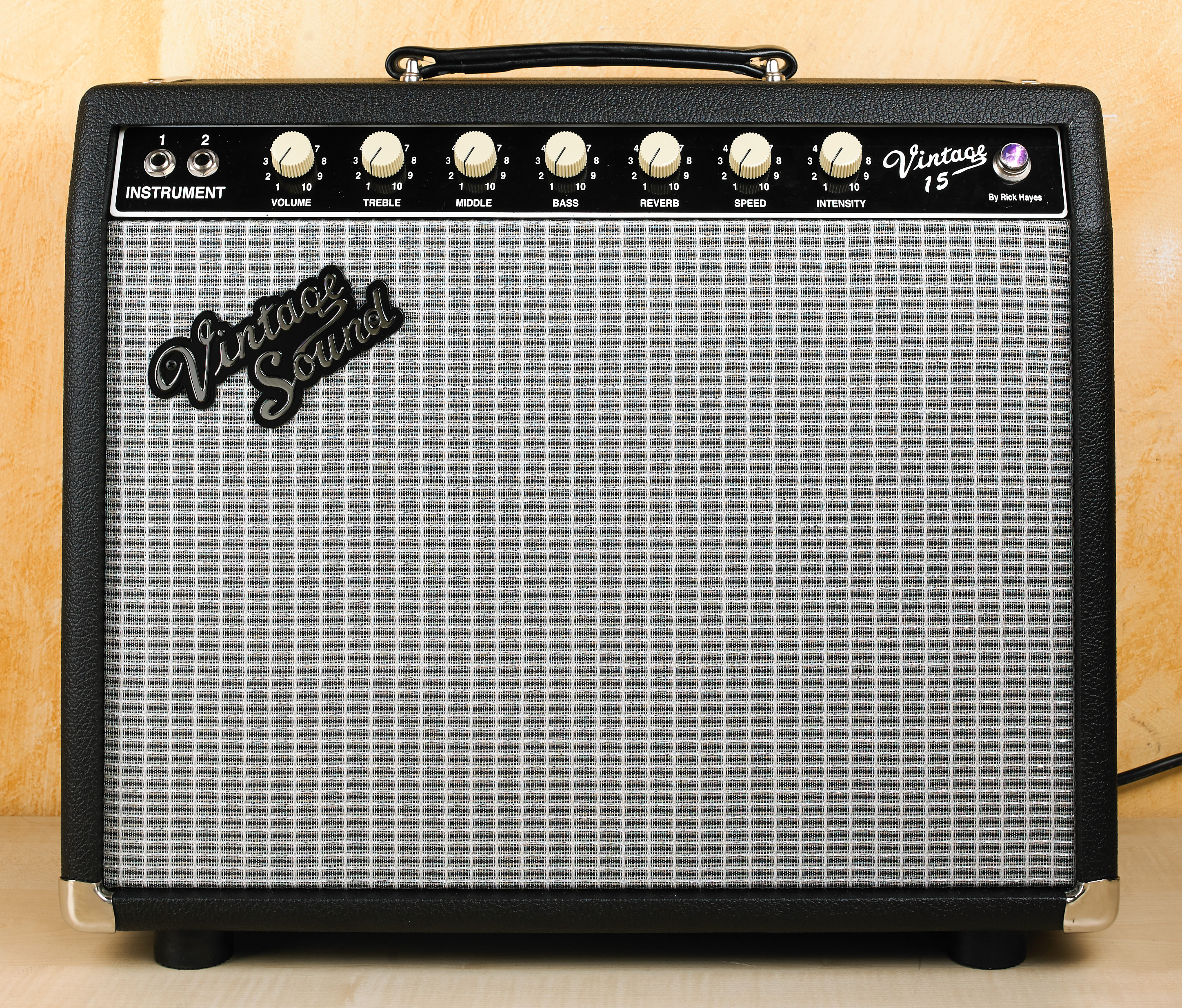

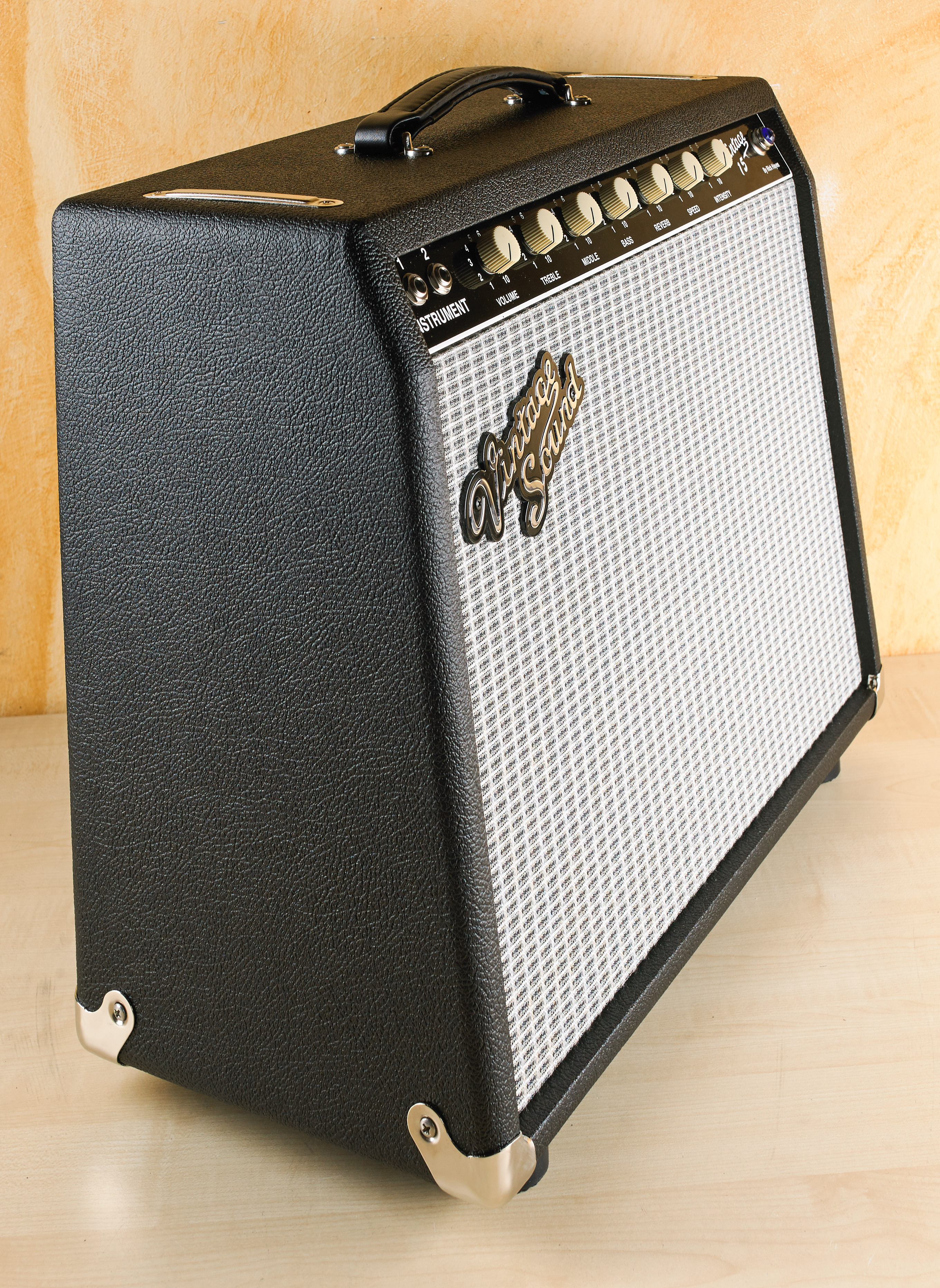

Vintage 15 MV

(Princeton Style)

Type:

Power:

Output Tubes:

Preamp Tubes:

Rectifier:

Inputs:

Controls:


Back:


Reverb:

Tremolo:

Cabinet Material:

Combo Colors:


Head Colors:

Speaker:

Weight:

Dimension:

230V 50Hz (Black Face AA1164)

0-15 Watt

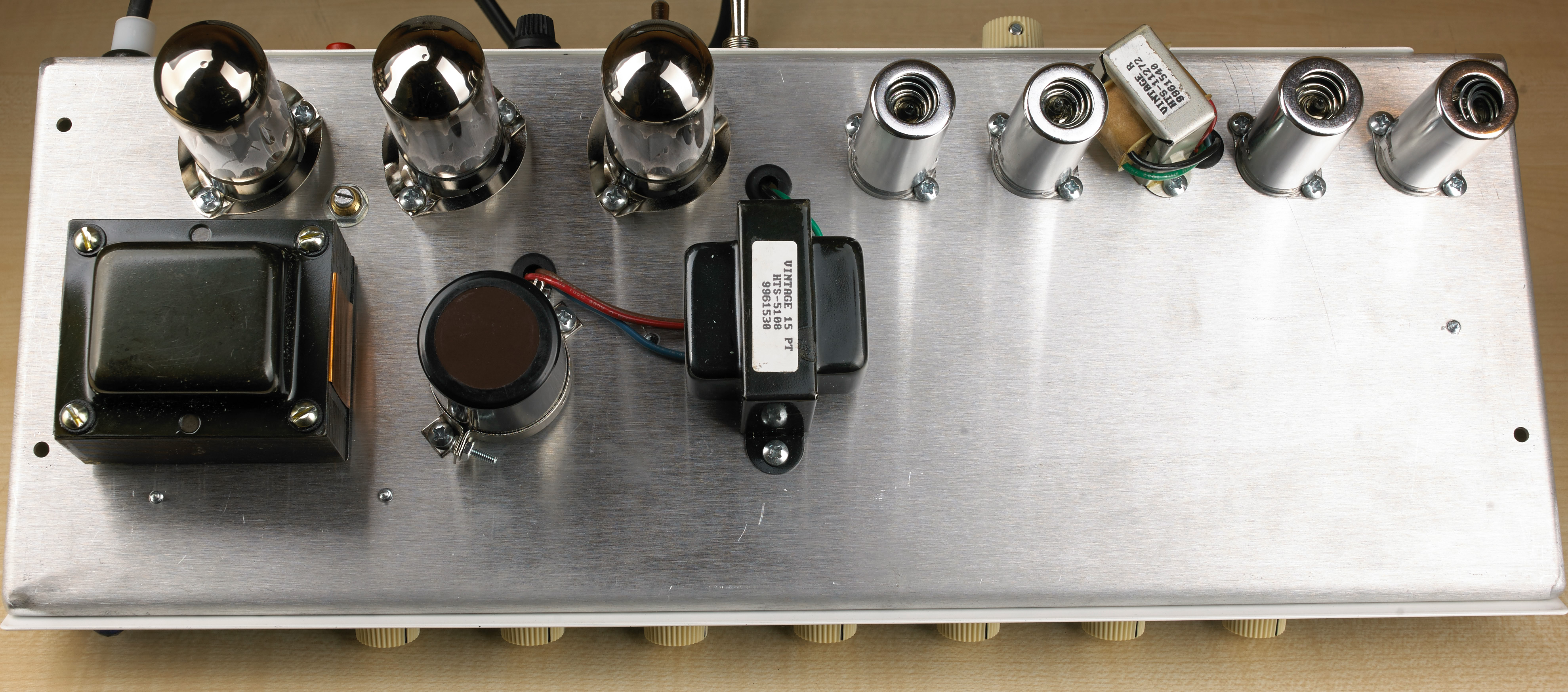

2x 6V6GT-STR

3x12AX7A-C 1x12AT7

5Y3

High & Low

Volume w/bright push/pull Treble, Middle, Bass. Reverb, Speed, Intensity w/Trem On/Off switch

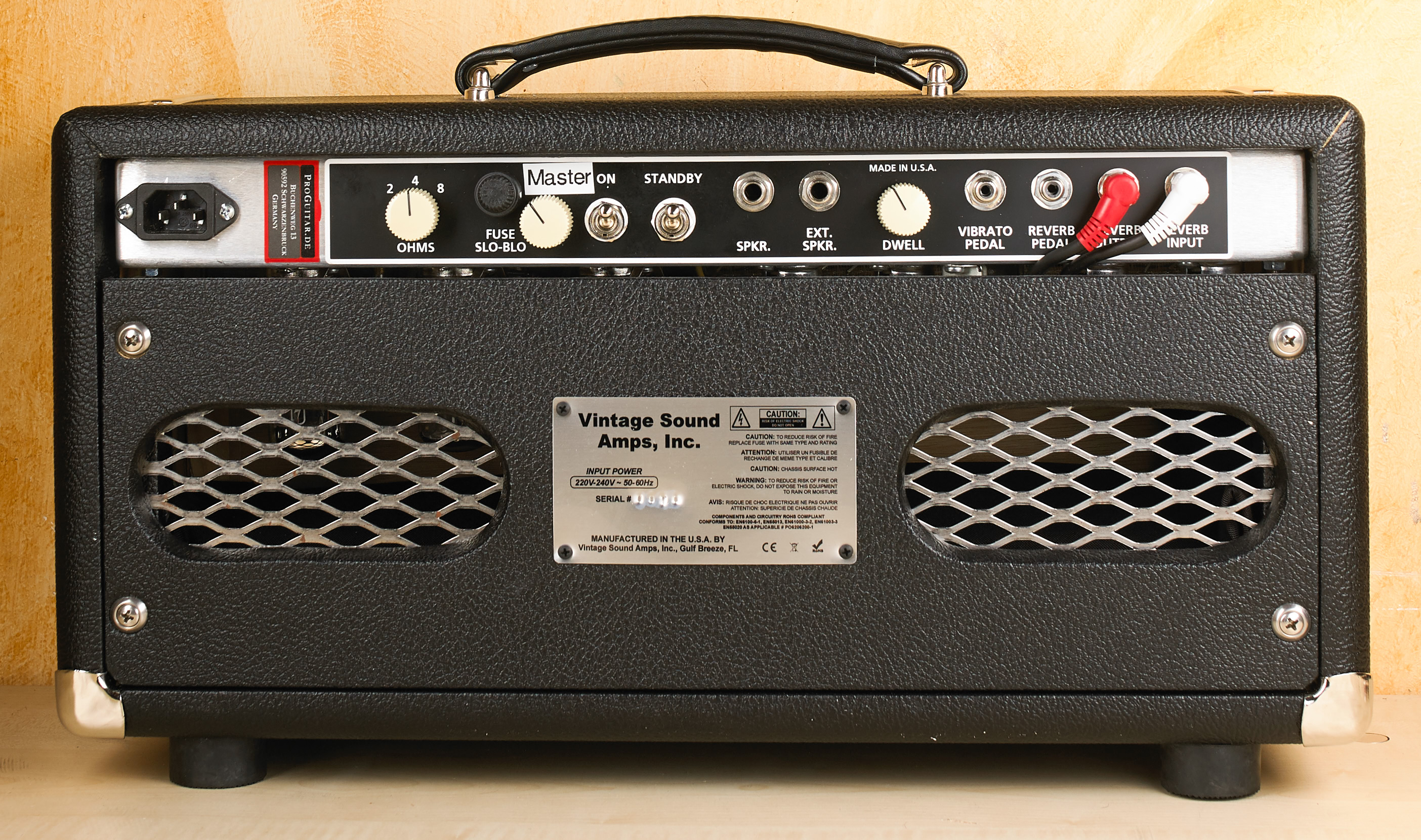

RCA Footswitch Jacks, 2x Speaker Jacks, Diaz Dwell Control, BIAS Points, Master Volume

Tube Driven Spring Reverb

Tube Vibrato

Solid Pine Cabinet w/ Birch Plywood Baffle & back panels

Blond Tolex w/beige-brown-gold grill 2.290,- Euros in stock!

Black Tolex w/silver grill 2.290,- Euros on order!

Black Tolex w/silver grill 2.290,- Euros in stock!

1x12“ VSA Custom made by WGS based on G12C/S

Combo: 15,7kg  Head: 9,2kg

Combo: W50xH40xD24cm   Head: B50,5xH27xT20,5cm

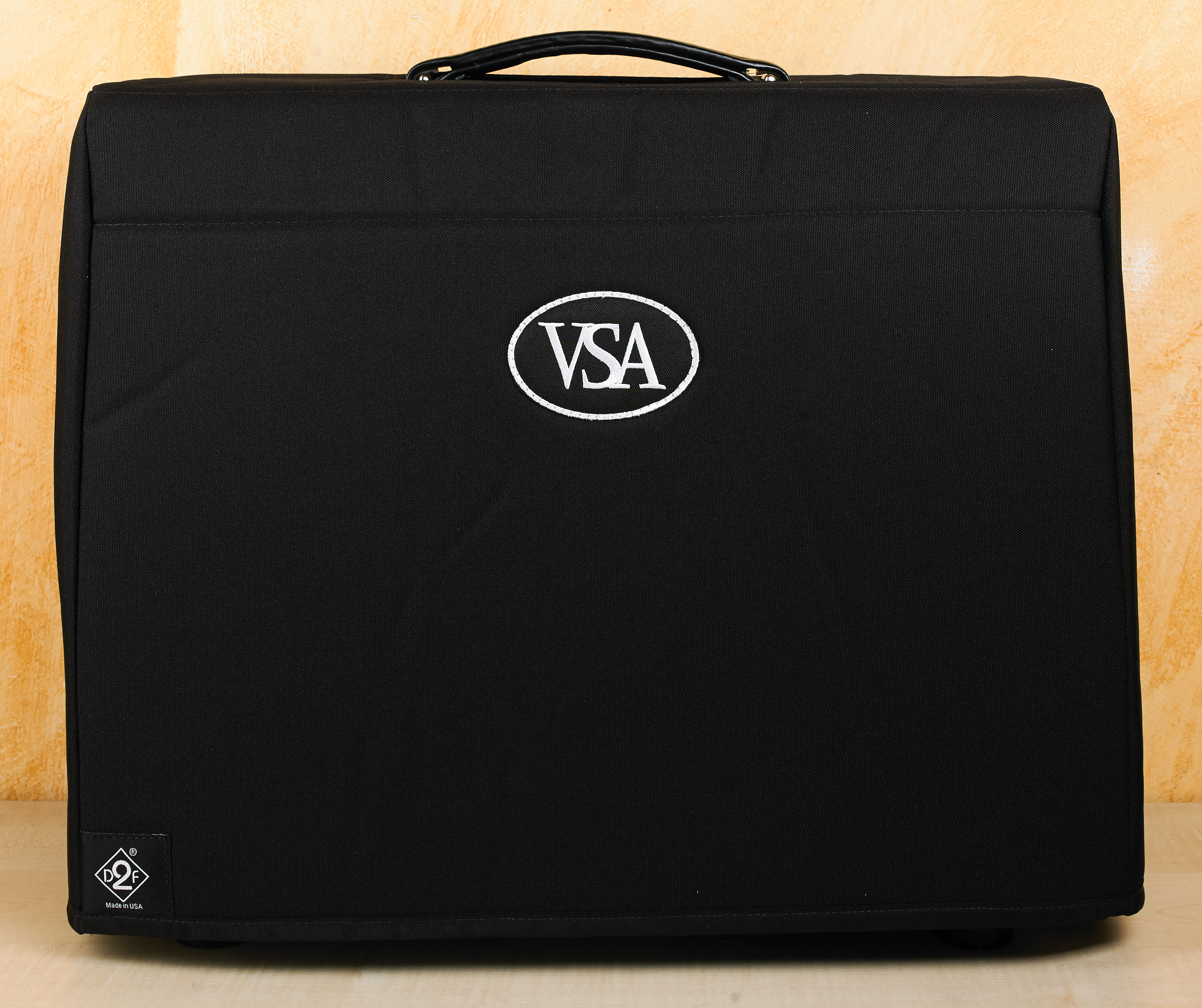

incl. Custom Padded Cover & 2-Button Footswitch
